CSS Borders and Box Decorations Module Level 4

1. Introduction

This module is currently maintained as a diff against the parts related to borders and box decorations of CSS Backgrounds and Borders Module Level 3 [CSS3BG]. We will fold in the text once it’s all formatted up and in CR again, as this will reduce the effort of keeping them in sync (source diffs will be accurate in reflecting the differences).

2. Borders

The border can either be a predefined style (solid line, double line, dotted line, pseudo-3D border, etc.) or it can be an image. In the former case, various properties define the style (border-style), color (border-color), and thickness (border-width) of the border.

2.1. Line Colors: the border-color properties

These properties set the foreground color of the border specified by the border-style properties.

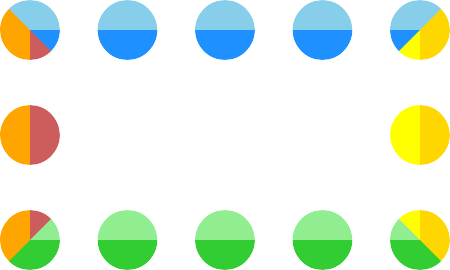

The stripes defined by <image-1D> follow the shape of the border on the side to which they apply, and are drawn in bands starting from the padding edge and progressing outwards. The border width at each point defines the total width of the stripes at that point.

.foo {
  border: 30px solid;
  border-color: stripes(dodgerblue, skyblue) stripes(yellow, gold) stripes(lightgreen, limegreen) stripes(indianred, orange);
}

border-color is a shorthand for the four border-*-color properties. The four values set the top, right, bottom and left border, respectively. A missing left is the same as right, a missing bottom is the same as top, and a missing right is also the same as top. This is resolved individually for each list item.

The flow-relative properties border-block-start-color, border-block-end-color, border-inline-start-color, and border-inline-end-color correspond to the physical properties border-top-color, border-bottom-color, border-left-color, and border-right-color. The mapping depends on the element’s writing-mode, direction, and text-orientation.

These two shorthand properties set the border-block-start-color & border-block-end-color and border-inline-start-color & border-inline-end-color, respectively. The first value represents the start side color, and the second value represents the end side color. If only one value is given, it applies to both the start and end sides.

2.2. Line Patterns: the border-style properties

The flow-relative properties border-block-start-style, border-block-end-style, border-inline-start-style, and border-inline-end-style correspond to the physical properties border-top-style, border-bottom-style, border-left-style, and border-right-style. The mapping depends on the element’s writing-mode, direction, and text-orientation.

These two shorthand properties set the border-block-start-style & border-block-end-style and border-inline-start-style & border-inline-end-style, respectively. The first value represents the start side style, and the second value represents the end side style. If only one value is given, it applies to both the start and end sides.

2.3. Line Thickness: the border-width properties

The flow-relative properties border-block-start-width, border-block-end-width, border-inline-start-width, and border-inline-end-width correspond to the physical properties border-top-width, border-bottom-width, border-left-width, and border-right-width. The mapping depends on the element’s writing-mode, direction, and text-orientation.

These two shorthand properties set the border-block-start-width & border-block-end-width and border-inline-start-width & border-inline-end-width, respectively. The first value represents the start side width, and the second value represents the end side width. If only one value is given, it applies to both the start and end sides.

2.4. Border Shorthand Properties

The flow-relative properties border-block-start, border-block-end, border-inline-start, and border-inline-end correspond to the physical properties border-top, border-bottom, border-left, and border-right. The mapping depends on the element’s writing-mode, direction, and text-orientation.

These two shorthand properties set the border-block-start & border-block-end or border-inline-start & border-inline-end, respectively, both to the same style.

3. Corners

3.1. Corner Sizing: the border-*-*-radius properties

The flow-relative properties border-start-start-radius, border-start-end-radius, border-end-start-radius, and border-end-end-radius correspond to the physical properties border-top-left-radius, border-bottom-left-radius, border-top-right-radius, and border-bottom-right-radius. The mapping depends on the element’s writing-mode, direction, and text-orientation, with the first start/end giving the block axis side, and the second the inline-axis side (i.e. patterned as 'border-block-inline-radius').

3.2. Corner Sizing Shorthands: the border-radius and border-*-radius shorthand properties

3.2.1. Sizing The Corners Of One Side: The border-top-radius, border-right-radius, border-bottom-radius, border-left-radius, border-block-start-radius, border-block-end-radius, border-inline-start-radius, border-inline-end-radius shorthands

The border-*-radius shorthands set the two border-*-*-radius longhand properties of the related side. If values are given before and after the slash, then the values before the slash set the horizontal radius and the values after the slash set the vertical radius. If there is no slash, then the values set both radii equally. The two values for the radii are given in the order top-left, top-right for border-top-radius, top-right, bottom-right for border-right-radius, bottom-left, bottom-right for border-bottom-radius, top-left, bottom-left for border-left-radius, start-start, start-end for border-block-start-radius, end-start, end-end for border-block-end-radius start-start, end-start for border-inline-start-radius, and start-end, end-end for border-inline-end-radius. If the second value is omitted it is copied from the first.

3.2.2. Sizing All Corners At Once: The border-radius shorthand

See [CSS3BG].

3.3. Corner Shaping: the corner-shape property

By default, non-zero border-radius values define a quarter-ellipse corner shape that rounds the affected corners, filling the corner area defined by the border-radius for that corner. However in some cases, other corner shapes are desired. The corner-shape property (and its longhands) specify exactly what corner shapes a box will use for the region defined by its border-radius values.

The different corner shapes can all be expressed as different parameters to a superellipse. A superellipse is a generalization of an ellipse, and based on its `k` parameter can express all the shapes between a square, an ellipse, and a notch.

To allow full expression as well as interpolation, the corner-shape properties can provide the superellipse parameter directly using the superellipse() function, or use one of the supplied keywords which represent commonly used parameters. See the <corner-shape-value> definition for details.

3.3.1. The corner-shape Shorthand

The corner-shape property specifies the shape of the box’s corners, within the region specified by border-radius.

<corner-shape-value> = round | scoop | bevel | notch | square | squircle |
                       <superellipse()>
superellipse() = superellipse(<number [-∞,∞]> | infinity | -infinity)

round

The corner shape is a quarter of a convex ellipse. Equivalent to superellipse(1).

Note: This is the initial value of corner-shape properties, as it was the behavior of border-radius before corner-shape existed.

squircle

The corner shape is a quarter of a "squircle", a convex curve between round and square. Equivalent to superellipse(2).

square

The corner shape is a convex 90deg angle. Equivalent to superellipse(infinity).

Note: This looks identical to the "normal" square corner you get from border-radius: 0, but it can smoothly animate with the other corner-shape values.

bevel

The corner shape is a straight diagonal line, neither convex nor concave. Equivalent to superellipse(0).

scoop

The corner shape is a concave quarter-ellipse. Equivalent to superellipse(-1).

notch

The corner shape is a concave 90deg angle. Equivalent to superellipse(-infinity).

superellipse(K)

The corner shape is a quarter of a superellipse. The argument K is the superellipse parameter, and it defines a superellipse using an exponent of 2^K.

See the note in § 3.3 Corner Shaping: the corner-shape property for an explanation of the mathematical definition of a superellipse, and what various K values mean. See § 3.3.3 Rendering corner-shape for precise details of how the superellipse is computed and rendered.

Note: If border-radius is not specified (or is set to 0), the corner area is zero-sized as well, and corner-shape won’t have any effect.

corner-shape does not alter the overflow rules for border-radius, except insofar as it shapes the corners differently; elements are still clipped by the shaped border as normal.

The curve specified by corner-shape defines the outer edge of the border. The inner edge of the border follows the curve of the outer edge (in a way that’s not necessarily expressible as a superellipse curve), with a nearly consistent distance from the outer edge throughout, (or a linearly increasing distance if the border-width of the two border edges meeting at the the corner are not uniform).

corner-shape also affects the rendering of box-shadow, and how the overflow clip edge is shaped when it’s extended from the box, but these do not directly follow the corner-shape path like the inner border edge does. Instead, it scales the corner-shape path in an axis-aligned manner.

3.3.2. The corner-*-shape Shorthands And Longhands

The corner-*-*-shape longhand properties set the corner shape for the given corner.

The flow-relative longhands (corner-start-start-shape, etc) correspond to the physical longhands (corner-top-left-shape, etc) depending on the element’s writing-mode, direction, and text-orientation. The first start/end gives the block axis side, and the second the inline-axis side (i.e. patterned as corner-block-inline-shape).

The corner-*-shape/etc shorthands set the two corner-*-*-shape properties of the related side. If only one value is given, the second value defaults to the same value.

For the physical shorthands (corner-top-shape, etc), the values are either in left/right order, or top/bottom order, whichever axis is meaningful for the property. That is, corner-top-shape: round square sets corner-top-left-shape: round; corner-top-right-shape: square;.

For the logical shorthands (corner-block-start-shape, etc), the values are always in start/end order in the other axis. That is, corner-block-start-shape: round square sets corner-start-start-shape: round; corner-start-end-shape: square;.

3.3.3. Rendering corner-shape

The canonical superellipse formula can be described in Cartesian coordinates, as follows, where s is the superellipse parameter:

k = 2abs(|s|)
xk + yk = 1

The resulting x and y are later projected to CSS coordinates by scaling based on the border-radius properties, inversed if the superellipse parameter is negative. This creates symmetry between convex and concave shapes of the same absolute superellipse parameter.

Since stroking a superellipse accurately may be computationally intensive, user agents may approximate the path using bezier curves, as well as account for sharp edges and overlaps.

An element element’s outer contour is the border contour path given element and element’s border edge.

An element element’s inner contour is the border contour path given element and element’s padding edge.

An element’s border is rendered in the area between its outer contour and its inner contour.

An element’s outline follows the outer contour with the used outline-width and outline-offset. The precise way in which it is rendered is implementation-defined.

An element’s overflow area is shaped by its inner contour. An element’s overflow clip edge is shaped by the border contour path given element, and element’s padding edge, and element’s used overflow-clip-margin.

Each shadow of element’s 'box shadow' is shaped by the border contour path given element, and element’s border edge, and the shadow’s used box-shadow-spread.

3.3.4. Constraining opposite radii

When concave corner-shape values are present (the superellipse parameter is negative), diagonally opposite corners might overlap each other.

div {
  corner-shape: scoop;
  border-top-left-radius: 80%;
  border-bottom-right-radius: 80%;
}

To prevent this, the four radii are constrained to prevent overlaps. This is done by computing a hull polygon for each of the opposite corners, and finding the highest downscale factor which, if applied to both corners, would make it so that the polygons would not intersect.

3.3.5. Interpolating corner shapes

Since a <corner-shape-value> can always be expressed by a superellipse() with an superellipse parameter variable, interpolating between two <corner-shape-value>s is done by interpolating the superellipse parameter itself. Since it uses a log2, interpolating it linearly would result in an effect where concave corners interpolate at a much higher velocity than convex corners. To balance that, the superellipse interpolation formula describes how a superellipse parameter is converted to a value between 0 and 1, and vice versa:

To interpolate a superellipse parameter s to an interpolation value between 0 and 1, return the normalized superellipse half corner given s.

4. Partial borders

CSS borders traditionally cover an entire border edge. Sometimes, however, it can be useful to hide some parts of the border.

Here are two proposals for doing this: the second one is from GCPM, the first one is an attempt to recast it more readably. The names are terrible, known problem, proposals accepted. There is a problem with conceiving this as clipping: if you have dotted borders, you want whole dots always, not parts of dots. So it should be a drawing limit, not a clip.

4.1. Partial Borders: the border-limit property

By default, the entire border is drawn. However, border rendering can be limited to only part of a border. The keyword specifies which part, and the length or percentage specifies how much.

all

The entire border is drawn.

sides

The sides are drawn up to but not including the corners (as defined by the border radii). A length or percentage is measured from the center of each side: 50% draws the middle 50% of the border; by default the entire side is drawn.

corners

The corners are drawn plus the specified distance into the sides if specified. A length is measured from the closest edge of the corner area. A percentage is measured from the absolute corner of the border box.

left

right

For the left and right (vertical) sides, draws the entire side and corner. For the top and bottom (horizontal) sides, draws the left/right portion, as specified. Distances are measured as for corners.

top

bottom

For the top and bottom (horizontal) sides, draws the entire side and corner. For the left and right (vertical) sides, draws the top/bottom portion, as specified. Distances are measured as for corners.

div {
  border: solid;
  border-limit: sides 50%;
}

div {
  border: solid;
  border-radius: 1em 2em;
  border-limit: corners;
}

div {
  border-top: solid;
  border-limit: left 4em;
}

div {
  border: solid;
  border-limit: corners 10px;
}

div {
  border: solid;
  border-radius: 5px;
  border-limit: corners 5px;
}

div {
  border: solid;
  border-radius: 5px;
  border-limit: corners 30%;
}

4.2. The border-clip properties

These properties split their respective borders into parts along the border edge. The first part is visible, the second is invisible, the third part is visible, etc. Parts can be specified with lengths, percentages, or flexible lengths (expressed by the fr unit, as per [CSS3GRID]). The normal value means that the border is not split, but shown normally.

border-clip is a shorthand property for the four individual properties.

If the listed parts are shorter than the border, any remaining border is split proportionally between the specified flexible lengths. If there are no flexible lengths, the behavior is as if 1fr had been specified at the end of the list.

If the listed parts are longer than the border, the specified parts will be shown in full until the end of the border. In this case, all flexible lengths will be zero.

For horizontal borders, parts are listed from left to right. For vertical borders, parts are listed from top to bottom.

The exact border parts are determined by laying out the specified border parts with all flexible lengths initially set to zero. Any remaining border is split proportionally between the flexible lengths specified.

border-clip: 10px 1fr 10px;

border-clip-top: 10px 1fr 10px;
border-clip-bottom: 10px 1fr 10px;
border-clip-right: 5px 1fr 5px;
border-clip-left: 5px 1fr 5px;

border-clip-top: 0 10px 1fr 10px;
border-clip-bottom: 0 10px 1fr 10px;
border-clip-right: 0 5px 1fr 5px;
border-clip-left: 0 5px 1fr 5px;

border: thin solid black;
border-clip: 0 1fr; /* hide borders */
border-clip-top: 10px 1fr 10px; /* make certain borders visible */
border-clip-bottom: 10px 1fr 10px;

border-top: thin solid black;
border-bottom: thin solid black;
border-clip-top: 10px;
border-clip-bottom: 10px;

border-top: thin solid black;
border-clip: 10px;

A sentence consists of words¹.

¹ Most often.

@footnote {
  border-top: thin solid black;
  border-clip: 4em;
}

border: 4px solid black;
border-clip-top: 40px 20px 0 1fr 20px 20px 0 1fr 40px;

border: 4px solid black;
border-clip-top: 3fr 10px 2fr 10px 1fr 10px 10px 10px 1fr 10px 2fr 10px 3fr;

5. Drop Shadows

5.1. Coloring shadows: the box-shadow-color property

The box-shadow-color property defines one or more drop shadow colors. The property accepts a comma-separated list of shadow colors.

See the section “Layering, Layout, and Other Details” for how box-shadow-color interacts with other comma-separated drop shadow properties to form each drop shadow layer.

5.2. Offsetting shadows: the box-shadow-offset property

The box-shadow-offset property defines one or more drop shadow offsets. The property accepts a comma-separated list. Each item in that list can either be the none value, which indicates no shadow, or a pair of horizontal and vertical offsets, where both values are described as <length> values.

none

The shadow will not be rendered. The values of other box shadow properties corresponding to this shadow have no effect.

1st <length>

Specifies the horizontal offset of the shadow. A positive value draws a shadow that is offset to the right of the box, a negative length to the left.

2nd <length>

Specifies the vertical offset of the shadow. A positive value offsets the shadow down, a negative one up.

See the section “Layering, Layout, and Other Details” for how box-shadow-offset interacts with other comma-separated drop shadow properties to form each drop shadow layer.

5.3. Blurring shadows: the box-shadow-blur property

The box-shadow-blur property defines one or more blur radii for drop shadows. The property accepts a comma-separated list of <length> values.

Negative values are invalid. If the blur value is zero, the shadow’s edge is sharp. Otherwise, the larger the value, the more the shadow’s edge is blurred. See Shadow Blurring, below.

See the section “Layering, Layout, and Other Details” for how box-shadow-blur interacts with other comma-separated drop shadow properties to form each drop shadow layer.

5.4. Spreading shadows: the box-shadow-spread property

The box-shadow-spread property defines one or more spread distances for drop shadows. The property accepts a comma-separated list of <length> values.

Positive values cause the shadow to expand in all directions by the specified radius. Negative values cause the shadow to contract. See Shadow Shape, below.

Note that for inner shadows, expanding the shadow (creating more shadow area) means contracting the shadow’s perimeter shape.

See the section “Layering, Layout, and Other Details” for how box-shadow-spread interacts with other comma-separated drop shadow properties to form each drop shadow layer.

5.5. Spreading shadows: the box-shadow-position property

The box-shadow-position property defines one or more drop shadow positions. The property accepts a comma-separated list of outset and inset keywords.

outset

Causes the drop shadow to be an outer box-shadow. That means, one that shadows the box onto the canvas, as if it were lifted above the canvas.

inset

Causes the drop shadow to be an inner box-shadow. That means, one that shadows the canvas onto the box, as if the box were cut out of the canvas and shifted behind it.

See the section “Layering, Layout, and Other Details” for how box-shadow-position interacts with other comma-separated drop shadow properties to form each drop shadow layer.

5.6. Drop Shadows Shorthand: the box-shadow property

The box-shadow property attaches one or more drop-shadows to the box. The property accepts a comma-separated list of shadows, ordered front to back.

Each shadow is given as a <spread-shadow>, outlining the box-shadow-offset, and optional values for the box-shadow-blur, box-shadow-spread, box-shadow-color, and box-shadow-position. Omitted lengths are 0; omitted colors default to transparent when the specified offset is none and to currentcolor otherwise.

<spread-shadow> = <'box-shadow-color'>? && [ <'box-shadow-offset'> [ <'box-shadow-blur'> <'box-shadow-spread'>? ]? ] && <'box-shadow-position'>?

5.7. Layering, Layout, and Other Details

Drop shadows are declared in the coordinated value list constructed from the box-shadow-* properties, which form a coordinating list property group with box-shadow-offset as the coordinating list base property. See CSS Values 4 § A Coordinating List-Valued Properties.

The shadow effects are applied front-to-back: the first shadow is on top and the others are layered behind. Shadows do not influence layout and may overlap (or be overlapped by) other boxes and text or their shadows. In terms of stacking contexts and the painting order, the outer box-shadows of an element are drawn immediately below the background of that element, and the inner shadows of an element are drawn immediately above the background of that element (below the borders and border image, if any).

Unless otherwise specified, drop shadows are only applied to the principal box. If the affected box has multiple fragments, the shadows are applied as specified in box-decoration-break.

Shadows do not trigger scrolling or increase the size of the scrollable area.

Outer shadows have no effect on internal table elements in the collapsing border model. If a shadow is defined for single border edge in the collapsing border model that has multiple border thicknesses (e.g. an outer shadow on a table where one row has thicker borders than the others, or an inner shadow on a rowspanning table cell that adjoins cells with different border thicknesses), the exact position and rendering of its shadows are undefined.

6. Border Shaping

While corner-shape and border-radius allow some expressiveness to styling a border, they still work with the assumption that the border is rectangular.

The border-shape function augments these capabilities, by enabling the author to use any basic shape to specify the path of the border.

6.1. The border-shape property

The border-shape property is provided with either a single <basic-shape> or two <basic-shape>s, resulting in one or two paths, respectively. The single-path border shape varint uses the existing border properties of the element to stroke the path that the given <basic-shape> resolves to, while the double-path border shape variant fills the area between the two paths as if it were the border.

The border-shape property is not compatible with border-radius and corner-shape. When an element’s computed value of border-shape is not none, its border-radius is ignored, as if it was set to 0. corner-shape is implicitly ignored, as it can only work in tandem with border-radius.

A box-shadow follows both the inner and outer border paths.

border-shape does not affect geometry or layout, which is still computed using the existing border-width properties.

border-shape does not affect the flow of content inside the box. Note: An author can use border-shape in tandem with shape-inside to create effects that decorate the box and control its text flow at the same time.

The inner border-shape clips the overflow content of the element, in the same manner as border-radius, as described in corner clipping.

how should this affect clipping replaced elements?

The fill and stroke color, as well as the stroke width, are taken from the respective border-color and border-width properties.

define this in detail. Perhaps it should be overridable somehow?

what do we do about border-style? It can’t exactly work for every arbitrary shape.

7. Changes

7.1. Additions since [CSS3BG]

• <image-1D> as value for border-color and its longhands

• added physical and logical border-*-radius shorthands

• added corner-shape and related corners shorthand

• added partial borders via border-limit and border-*-clip properties

• turned box-shadow into a shorthand and added longhands

• moved logical border properties from [CSS-LOGICAL-1] to this spec.
